Parent Layer: MWD Facilities

Name: MWD Main Lines

Display Field: dim1name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description:

Service Item Id: 4e51e0d7c6ab49f39b40e0c6e3557edb

Copyright Text: Metropolitan Water District of Southern California (MWD)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 1000000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.3208199064525602E7
YMin: 3973874.8880463904
XMax: -1.3087497364934288E7
YMax: 4100260.142200638
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [0, 115, 76, 255]
Width: 1
Label: MWD Main Lines
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Route ( type: esriFieldTypeString, alias: Route, length: 10 )
• createid ( type: esriFieldTypeInteger, alias: createid )
• Reach ( type: esriFieldTypeString, alias: Reach, length: 10 )
• station ( type: esriFieldTypeDouble, alias: station )
• measure ( type: esriFieldTypeDouble, alias: measure )
• createdby ( type: esriFieldTypeString, alias: createdby, length: 7 )
• pttype ( type: esriFieldTypeString, alias: pttype, length: 18 )
• invert29 ( type: esriFieldTypeDouble, alias: invert29 )
• invert88 ( type: esriFieldTypeDouble, alias: invert88 )
• coating ( type: esriFieldTypeString, alias: coating, length: 3 )
• crossshape ( type: esriFieldTypeString, alias: crossshape, length: 9 )
• dim1name ( type: esriFieldTypeString, alias: dim1name, length: 10 )
• dim1value ( type: esriFieldTypeString, alias: dim1value, length: 7 )
• dim2name ( type: esriFieldTypeString, alias: dim2name, length: 11 )
• dim2value ( type: esriFieldTypeString, alias: dim2value, length: 6 )
• dim3name ( type: esriFieldTypeString, alias: dim3name, length: 15 )
• dim3value ( type: esriFieldTypeString, alias: dim3value, length: 7 )
• facabbrev ( type: esriFieldTypeString, alias: facabbrev, length: 9 )
• facname ( type: esriFieldTypeString, alias: facname, length: 50 )
• factype ( type: esriFieldTypeString, alias: factype, length: 20 )
• installed ( type: esriFieldTypeString, alias: installed, length: 8 )
• linestatus ( type: esriFieldTypeString, alias: linestatus, length: 14 )
• lining ( type: esriFieldTypeString, alias: lining, length: 12 )
• material ( type: esriFieldTypeString, alias: material, length: 16 )
• relocation ( type: esriFieldTypeString, alias: relocation, length: 3 )
• routetype ( type: esriFieldTypeString, alias: routetype, length: 19 )
• specnum ( type: esriFieldTypeString, alias: specnum, length: 17 )
• staother ( type: esriFieldTypeString, alias: staother, length: 11 )
• watertype ( type: esriFieldTypeString, alias: watertype, length: 14 )
• ptname ( type: esriFieldTypeString, alias: ptname, length: 30 )
• ptname2 ( type: esriFieldTypeString, alias: ptname2, length: 28 )
• stalabel ( type: esriFieldTypeString, alias: stalabel, length: 8 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

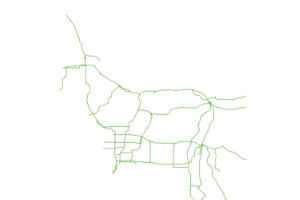

  Iteminfo   Thumbnail   Metadata
